O’YACHT Class 4VENDU

              ENVIE D’UN CATAMARAN TRÈS RAPIDE, DOTÉ D’UNE FINITION ET D’UN ÉQUIPEMENT SANS ÉQUIVALENT? LE CLASS 4 RÉPOND AUX CRITÈRES DE RECHERCHE LES PLUS ÉLEVÉS. LE MÂT ROTATIF CARBONE AXON/DRACULA SPARS EST MAGNIFIQUE, LA BÔME CARBONE AVEC LE POD DE PRISE DE RIS EST PÉTILLANTE D’INTELLIGENCE ET LES VOILES ULLMAN MEMBRANE PROCURENT À CE CATAMARAN RARE UN CONFORT À LA MER ET UN RENDEMENT ÉTONNANTS. LES SENSATIONS DE BARRES SONT ENTHOUSIASMANTES.LE POIDS DE 7,5T LÈGE EST RÉEL.

Mast . Carbon High modulus Rotative mast
Mast lenght . 19,4m / 63,6ft
Mast material . Carbon High Modulus
Shroud / Diamond . Shrouds Kevlar / Rod diamond
Boom . Carbon High Modulus 6m
Mainsail area . 82m2 carbon
Jib area . 44m2 carbon
Genoa . 74m2 carbon
Lazy . Lazzy jack and lazy bag
Reefing . 3 reefs
Haylyards . Dyneema haylyards / polyester sheets
Jammers . 4 Constrictor for reefs and main border
. 8 antal on mast
. 5 antal on roof for mast rotation, genoa
and solent
. 2 antal on aft for spi

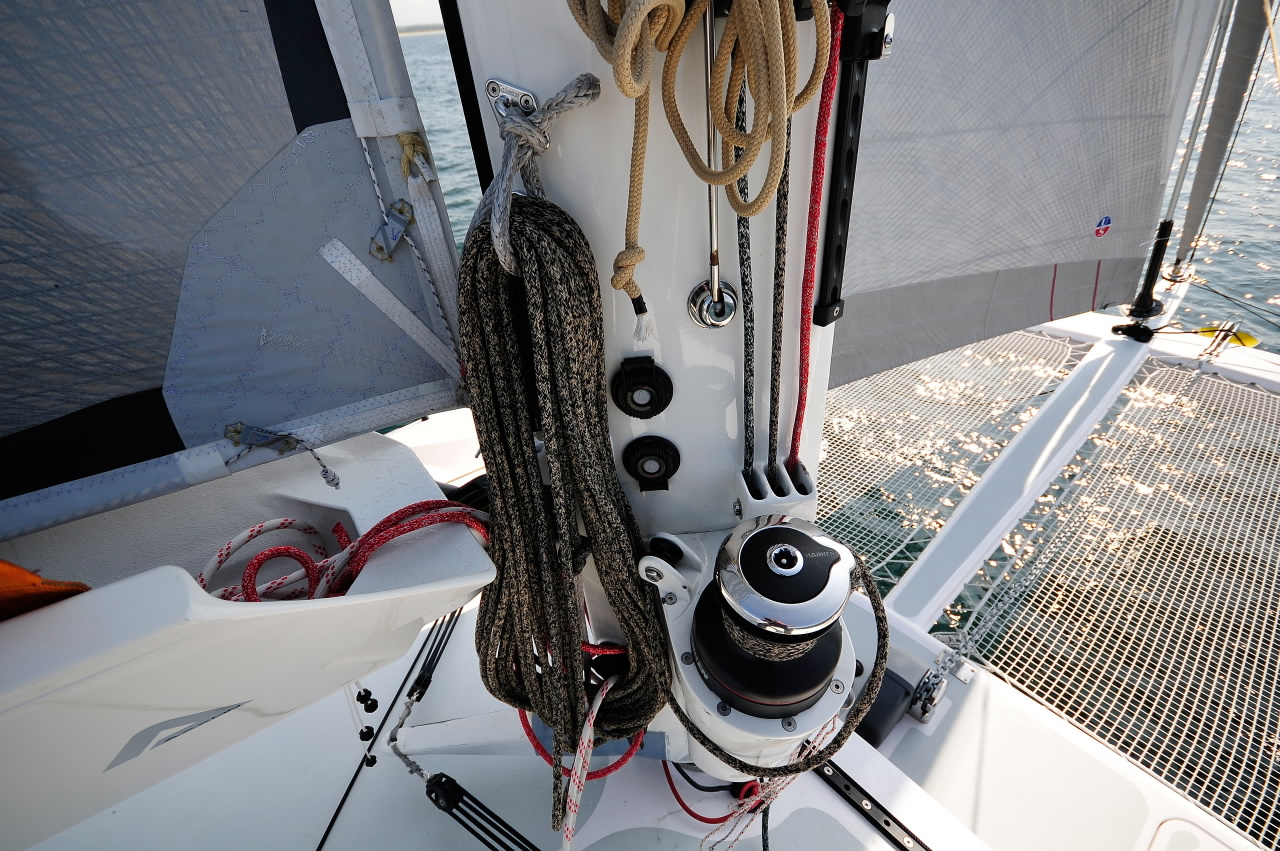

Winchs . 2 Electric ST46 vertical (mast and steering)
. 3 Manual ST50 (main and api sheets)
. 1 Manual ST46 (mast)
RIGGING / SAIL GEARS
Possible changes

Steering . Aluminium wheel 90cm / leather
. Full Jefa gearbox system
Cleats . 4 x 450 aluminium cleats (front/aft)
. 2 x 320 aluminium cleats (middle)
. 2 x 180 aluminium cleats (stairs)
. Stainless steel hull protections
Openings . 2 x 44 Flush Goiot
. 6 x hull porthole opening
. 2 x hull porthole in head
. 2 x custom panel at engine
. 2 x custom panel at sail locker
. 2 x custom panel on front deck
. 1 x custom panel at anchor opening
. 4 x Cabin saloon
. 1 x window at kichen
. 1 x window at cooking up/down opening
. 1 x sliding door outside at entry with key
Anchor / Mooring . 25kg Spade anchor
. 1200w windlass Maxwell
. 60m galva 10mm chain
. 4 x 20m mooring lines
. 6 fenders
Inlet . 2 fuel with Econab
. 2 water
. 2 black water out
Bath Equipment . Stainless steel ladder
. Shower hot and cold
Security . Anti slippery paint
. LifeRaft for 8 people ISO certification
. Handrail on roof
. 60cm stainless steel stanchions with 2 line
. Front pulpit with seat
. Life buoy
Gaz . 5kg gaz locker in cockpit bench
Trampoline . 30 x 30mm polyester trampoline
DECK EQUIPMENT
Engine . 2 x 30 hp engine with saildrive (Yanmar)
. Necessary equipment (fuel filter, mufler…)
. Sound insulation inside engine room
Bilges . 2 automatic pumps inside engine room
. 2 automatic pumps in hull
. 2 manual pumps action from cockpit for safety (engine/hull)
Fresh water . Polyurethan water tanks under saloon bench
. Water group with 8l balloon
. Pipes connections and angle with fast connector
. 40l heater with 220v and engine exchange
WC . 2 sanimarin electric WC
. 2 x 80l black water with sea/pier discharge
Generation . 2 engine alternators (80/110Ah depends on engine supplier)
. 1 x 60Ah Battery charger
Battery . 440Ah agm battery 12V
. 100Ah agm security battery 12V
Inverter . 1x 3000W inverter with plug at chart table and kitchen
Connection . 220V plug for pier connection with braker
. 15m 220V line with standard 16A plug
Electronic / Navigation . Navigation pack with loch / depth / Wind
. Auto pilot
. GPS
. VHF
. Compass
. AIS B (transponder)
. Garmin 12’’ plotter at steering + 2 displays (multi + pilot)
. At chart table : 15’’ display + 2 displays (multi + pilot)
. PC at chart table
Lights . 100% Led light all dimable with BUS System + 3.5’’ screen
control at chart table
. 4 Cockpit lights white
. 2 Cockpit lights white/red
. 4 saloon white lights
. 1 chart table (white/red)
. 1 kitchen
. 2 companion way led strips
. 2 head
. 6 cabin led strips
. 2 sail locker
. 2 engine room
Multimedia . Integrated Garmin multimedia / 4 speakers

Cockpit . 1 side dedicated to rest with table on aluminium pedestal
. 1 long bench behind seating protected with bimini on top
. 1 side dedicated for steering with steps
. Composite bimini for sun / rain protection
. Large (1.2m x 5m) aft platform for tender and relax when mooring
. 3 lockers under cockpit bench
Interior verticals . Painting white color and texture lining
Ceiling . Painting white color and Texture lining
Carpentry . All panels are 16mm sandwich with wood veneer and foam inside. Finish
is either mat or satin
. Many wood veneer to chose from
. Flat area with stratified veneer to avoid scratch (kitchen…)
Floor . All floor made with composite panels
. Finish with choice of stratified veneer

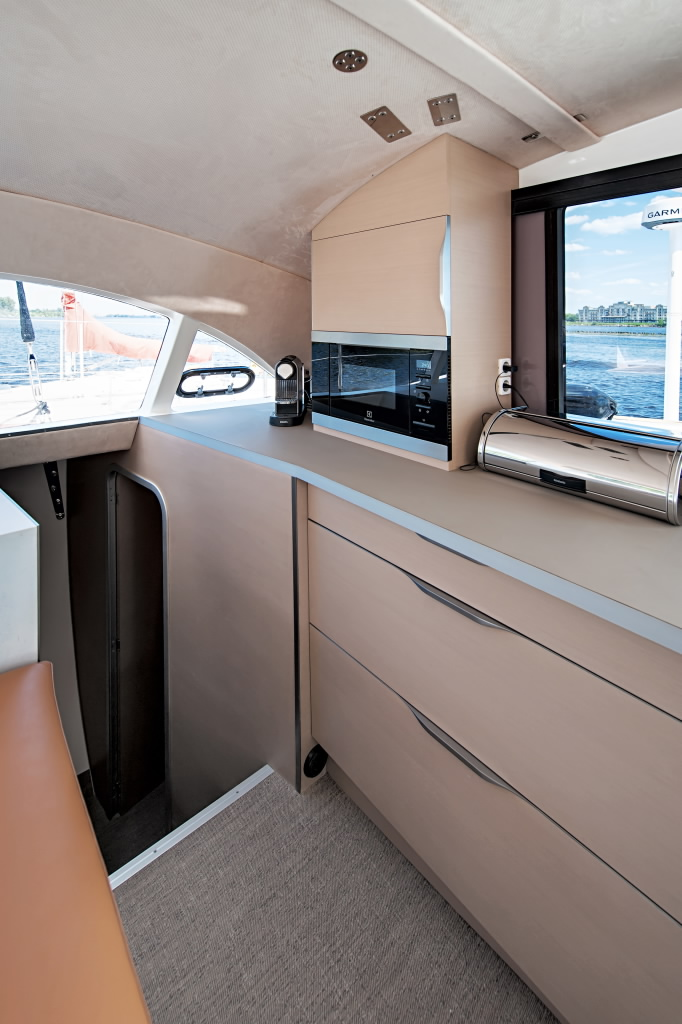

Kitchen . Complete kitchen with one or two sink
. Hot / Cold fresh water
. Tape hot / cold
. Gaz oven
. 3 fire cooking
. 130l fridge with freezer
. Bin under sink
. 4 x 35cm x 15cm drawers
. 1 x 60cm x 30cm drawer
. 3 x 80cm x 20cm drawers
. Cabinet on top starboard side
Saloon . Long seating bench : 2.70m x 70cm front – 1.80 x 70cm side
. Special cotton covering on bench
. Water tank under long bench
. Locker under bench for water system
Chart Table . 90cm table with large cabinet under
. pulpit in front for instruments
. pulpit on side with electrical brakers (220V / 12V)
. Shelves on the side
. Cabinet with shelves
. Cabinet for electricity management (charger…)
LAYOUT & COMFORT EQUIPMENT
Aft cabines . 1.65m x 2m bed
. 1.3m high x 80cm large, cabinet for cloths to hang and shoes
. Cabinet under bed
. 2 x Cabinets on bed side
. 1 x 2m x 30cm shelf
. 1 x 50cm x 40cm shelf
. Mattress with superior foam and master bed with memory
foam
Front cabines . 1.35m to 0,9m x 2m bed
. 1 x 90cm x 40cm cabinet for cloths to hang
. 1 x large cabinet under bed
. 1 x 2m shelf
. 1 x 50cm shelf
. Mattress with superior foam
Head . Separate shower area with separate hot/cold tape
. Stainless steel sink with hot/cold tape
. Cabinet with miror door , shelves inside
Front peak . Access with large 70cm panel
. All painted with grey color specific painting
